塔式/ 工作站
CS-T80
8 個托盤 Mini-Tower 機箱
- 支援Mini-ITX主機板

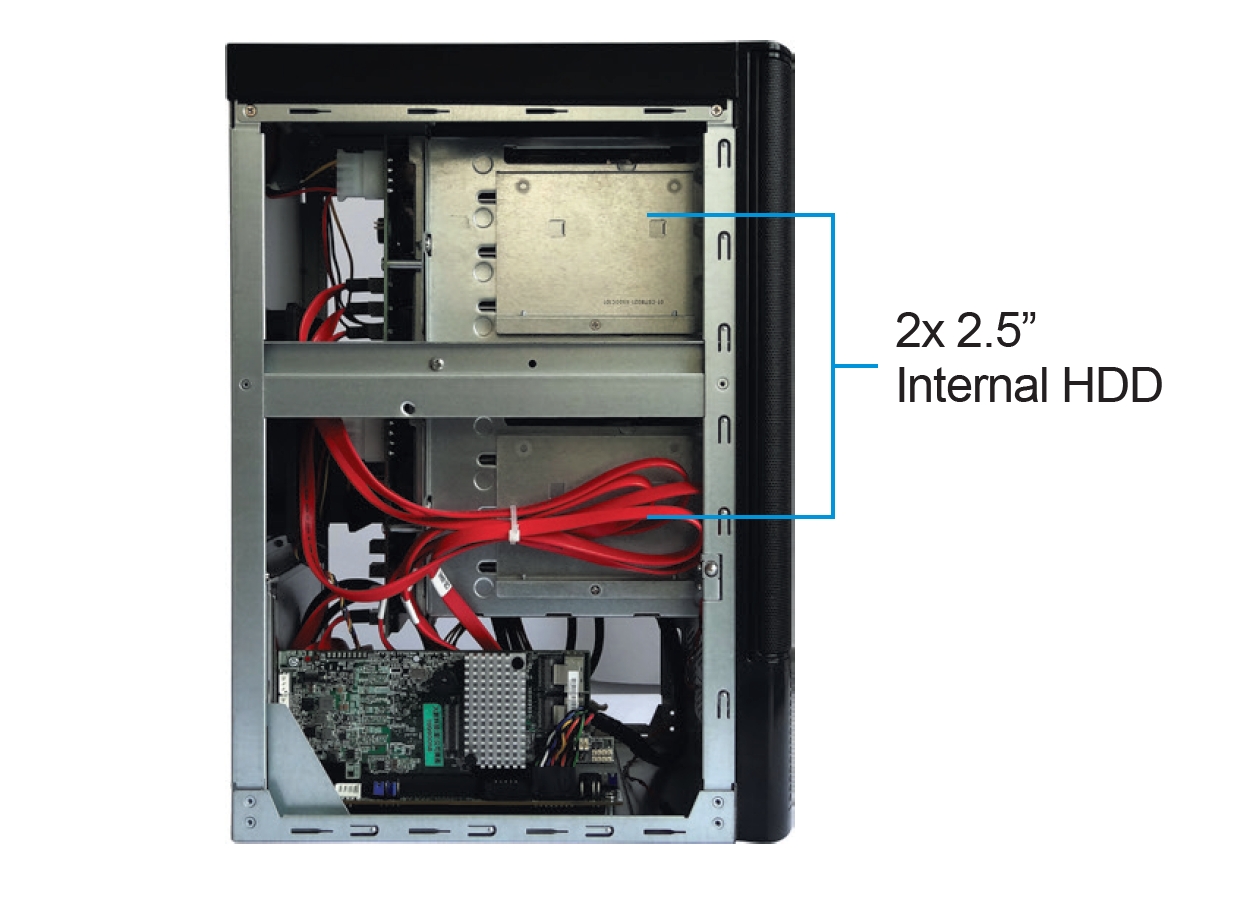

- 最多 3 個 2.5 吋內部 HDD 托架（預設 2 個）

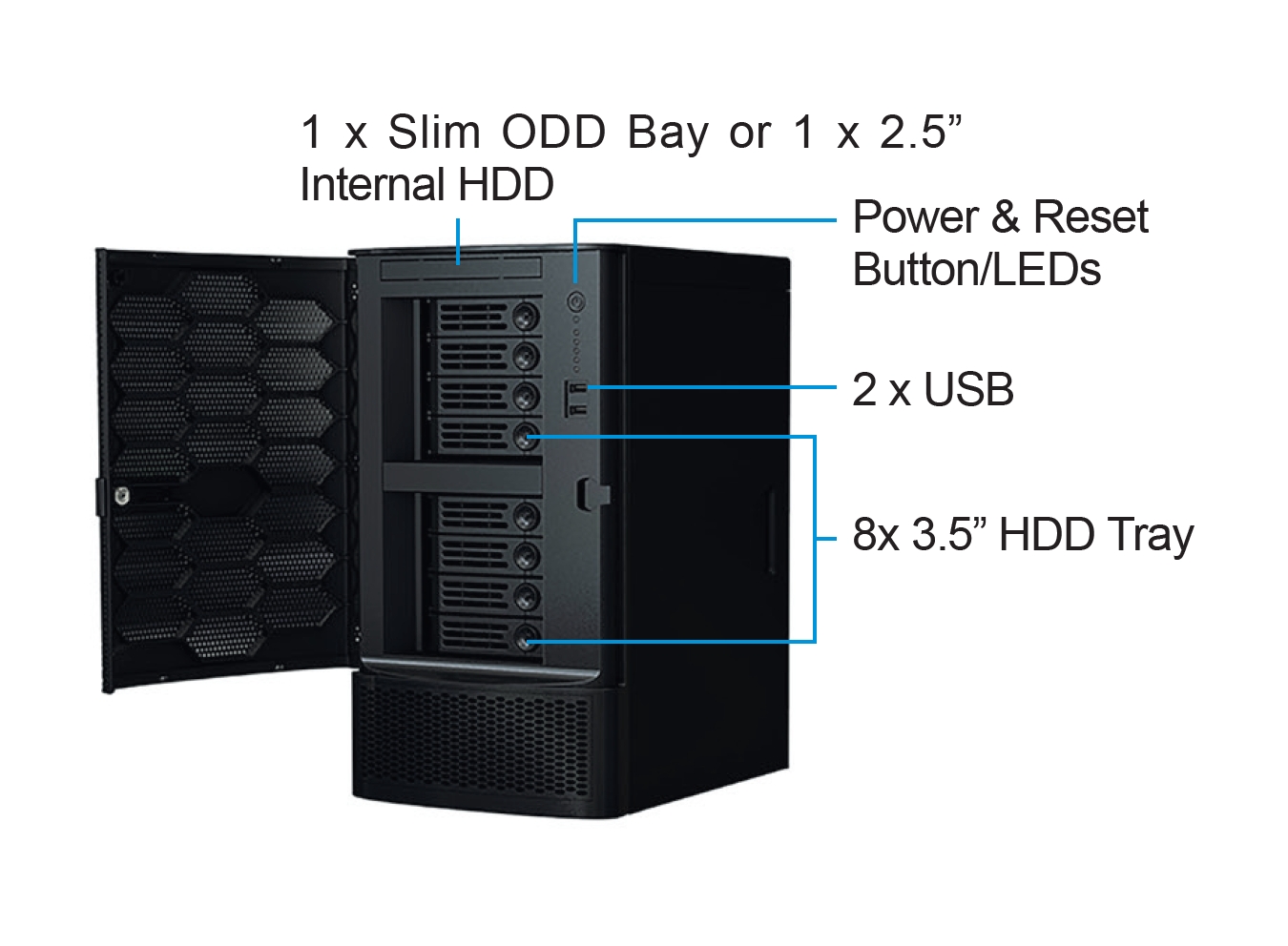

- 8 x 3.5” 可插拔 HDD 托盤
- 1 x 全高/半長擴充槽
- 支援250w Flex-ATX電源
| Model | CS-T80 |
| M/B Form Factor | Mini-ITX |

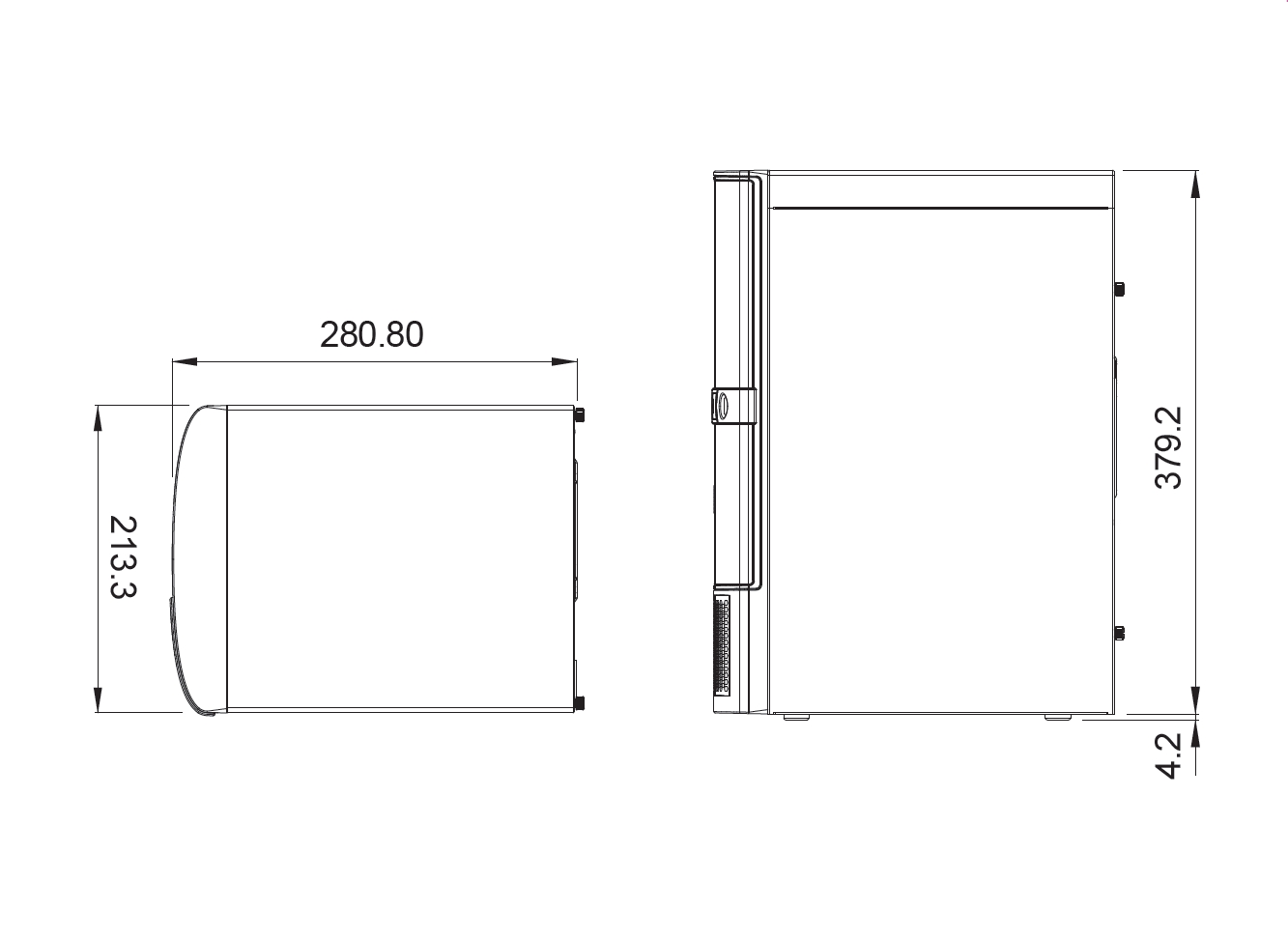

| Dimensions (W x D x H) | 210 x 280 x 379 mm (8.39” x 11.02” x 14.92") |
| Color | Black C |
| Processor Support | TDP < 95W |
| Drive Bay | Up to 3 x 2.5" Internal HDD Bays (Default 2pcs)
8 x 3.5” Swappable HDD Trays |
| Peripheral Bay | 1 x Slim ODD Bay |
| HDD Backplane | 2 x 4-Port 6 Gbps SAS/ SATA to SATA HDD |
| Expansion Slot | 1 x Fall-Height / Half-Length |

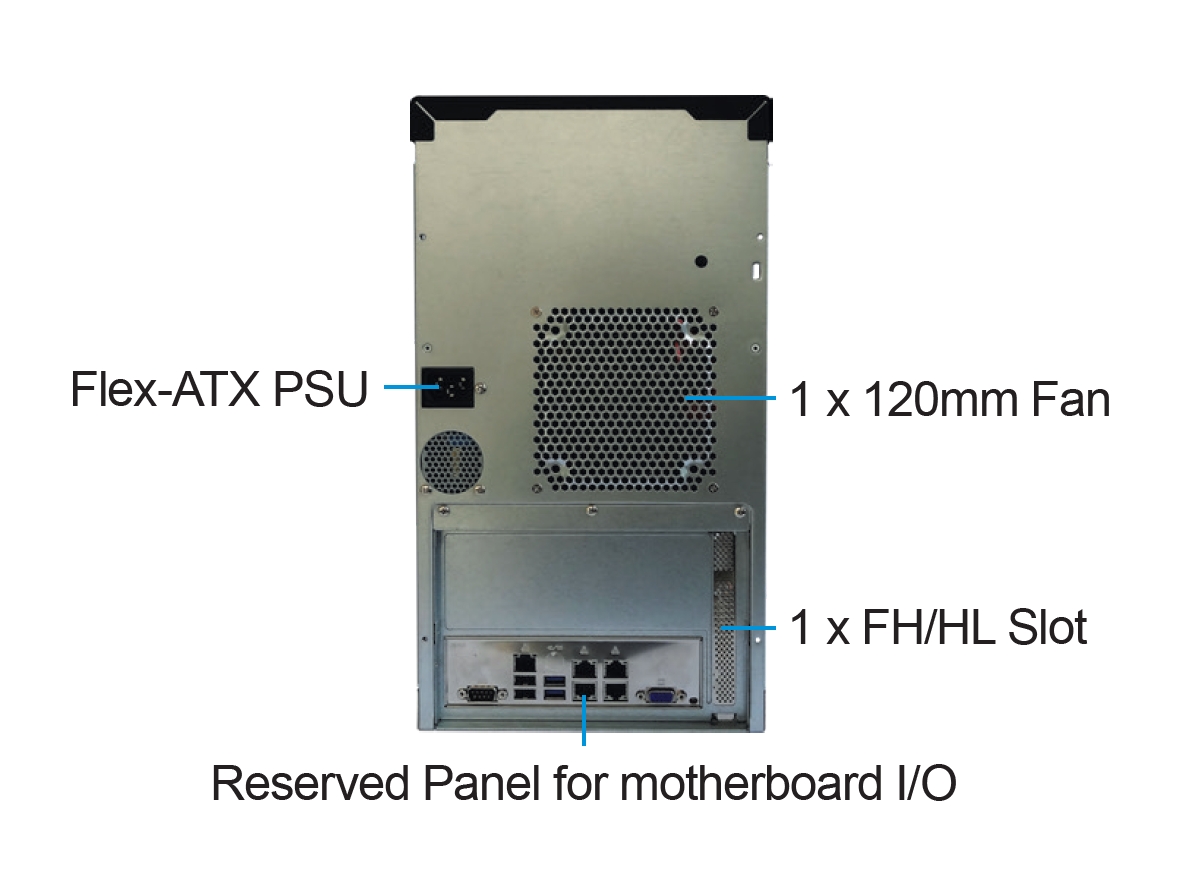

| System Cooling | 1 x 120mm PWM fan
2 x 60mm PWM fan (optional) |
| Front Panel | Input / Output
2 x USB 2.0 or 3.0 Button 1 x Power Button 1 x Reset Button LED 1 x Power LED 1 x HDD Activity LED 2 x Network Activity LEDs 1 x Overheat LED |
| Physical Secure | Intrusion Switch and Front Door Key Lock |
| Power Supply | 250W Flex-ATX Power Supply: D150 x W82 x H40mm |
| Environment | Operating Temperature: 10° ~ 35°C (50° ~ 95°F)
Storage Temperature: -40° ~ 70°C (-40° ~ 158°F) Operating Humidity: 5% ~ 90% RH (Non-Condensing) Storage Humidity: 5% ~ 95% RH (Non-Condensing) |
| Category | Model No. | Description |
| Backplane | AC-B931 | 4-Port 6Gbps SAS/SATA to SATA |
| USB | AC-U200 | USB2.0 Panel-Mount Cable (Single port) |
| USB | AC-U201 | USB2.0 Panel-Mount Cable (Dual port) |
| USB | AC-U303 | USB3.0 Panel-Mount Cable (Dual port) |
| USB | AC-U203 | USB2.0 Panel-Mount Cable (Dual port) |
| Power Supply | AC-PS2500 | 250W 1U Single PSU, Flex-ATX, 80PLUS Bronze (IE62368) (Brand: FSP) |
| Power Supply | AC-PS3500 | 350W 1U Single PSU, Flex-ATX, 80PLUS Gold (Brand: Acbel) |
| Power Supply | AC-PS2501 | 250W 1U Single PSU, Flex-ATX (IEC62368) (Brand: Liteon) |
| HDD Tray | AC-H31 | 3.5” HDD Tray with Easy Lock (Plastic) |
| HDD Tray | AC-H32 | 3.5” HDD Tray with Key Lock (Plastic) |
| HDD Tray | AC-H33 | 3.5” to 2.5” HDD Converter Tray with Easy Lock |
| HDD Tray | AC-H34 | 3.5” to 2.5” HDD Converter Tray with Key Lock |
| Heatsink | - | Please Refer Heatsink Product List for More Option |
